2.5" SSD Drive

SV25V-25

2.5" SSD Drive

SV25V-25

CoreVolt 2 Technology
Low-Density Parity-Check (LDPC) Code
Bad Block Management
Global Wear Leveling
Flash Translation Layer: Page Mapping
TRIM
DataDefenderTM Plus
ATA Secure Erase
SATA Power Management
Device Sleep
Hyper Cache Technology
Over-provisioning
DataRAIDTM
SMART Read RefreshTM
S.M.A.R.T.

Real-Time Protection. Nonstop Operation – Explore the SV25V-25

Apacer’s SV25V-25 is built to deliver rock-solid performance in industrial and embedded environments where power fluctuation, data integrity, and long-term reliability are mission-critical. Designed in compliance with SATA Revision 3.2 and advanced NAND management features, the SV25V-25 ensures consistent throughput, superior durability, and advanced data protection.

What sets SV25V-25 apart is Apacer’s exclusive CoreVolt 2 technology—an intelligent power protection mechanism that detects and reacts to voltage instability in real time. When voltage fluctuations are detected, the SSD automatically engages backup power supplied by tantalum polymer capacitors to stabilize the voltage, ensuring uninterrupted operation.

Boost industrial reliability with Apacer SV25V-25 – a high-performance SATA III SSD engineered for power-critical environments
● CoreVolt 2 Technology: Real-time SSD power stabilization for data and device protection.
● DataDefender™ Plus: Multi-layer power-loss protection mechanism that safeguards in-flight data through coordinated hardware, firmware, and software support.
● Robust Security: Integrates AES encryption and End-to-End Data Protection to ensure maximum data confidentiality and integrity.
● Thermal Management: Built-in thermal sensor enables active temperature monitoring for sustained performance.

Equipped with advanced technologies for enhanced endurance and efficiency
● LDPC ECC (Low-Density Parity-Check Code): Strengthens error correction capabilities to extend SSD lifespan.
● Global Wear-Leveling: Distributes write/erase cycles evenly across the drive to prevent premature wear-out.
● Flash Bad Block Management: Detects and isolates bad NAND blocks to maintain drive integrity.
● Page Mapping & Over-Provisioning: Enhances write performance and sustains long-term endurance.
● Comprehensive Data & Power Protection: Includes TRIM, Hyper Cache Technology, DataRAID™, SMART Read Refresh, NVMe Secure Erase, and multiple power-saving modes.

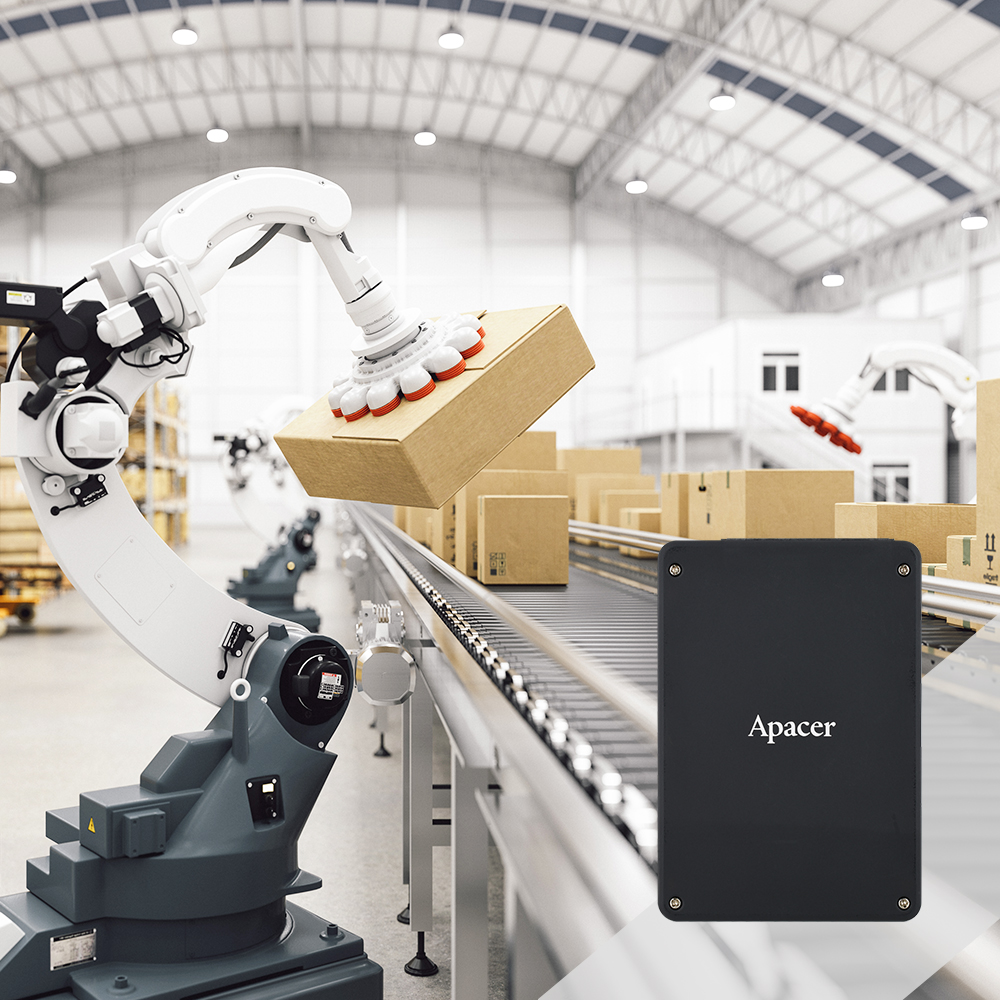

With CoreVolt 2 as its core differentiator, along with advanced flash management and industrial-grade reliability, Apacer SV25V-25 is purpose-built for edge computing, transportation, factory automation, and mission-critical embedded systems—where power stability and data protection are non-negotiable.

Spec

Model

SV25V-25
Interface

SATA 3.2 (6Gb/s)
Connector

(7+15) pin male
Form Factor

2.5”
NAND Flash Type

3D TLC
Capacity

120GB~1920GB
External DRAM

No
Sequential Read Performance (MB/sec)

Up to 555
Sequential Write Performance (MB/sec)

Up to 500
ECC Engine

Low-Density Parity-Check (LDPC) Code
IOPS (4K Random Write)

64K
Standard Operating Temperature (°C )

0 ~ + 70
Extended Operating Temperature(°C )

-40 ~ + 85
Storage Temperature(°C )

-55 ~ + 100
Thermal Sensor

Yes
Shock

Operation: 50G/11ms
(compliant with MIL-STD-202G)
Non-operation: 1500G/0.5ms
(compliant with MIL-STD-883K)
Vibration

Operation:7.69 Grms, 20~2000 Hz/random
(compliant with MIL-STD-810G)
Non-operation: 4.02Grms, 15~2000 Hz/sine
(compliant with MIL-STD-810G)
Operating Voltage

5.0 V ± 10%
Power Consumption

Active mode: 280 mA / Idle mode: 60 mA
Dimension (L x W x H )

7mm: 100.00 x 69.85 x 6.90 mm
MTBF (hours)

>3,000,000
