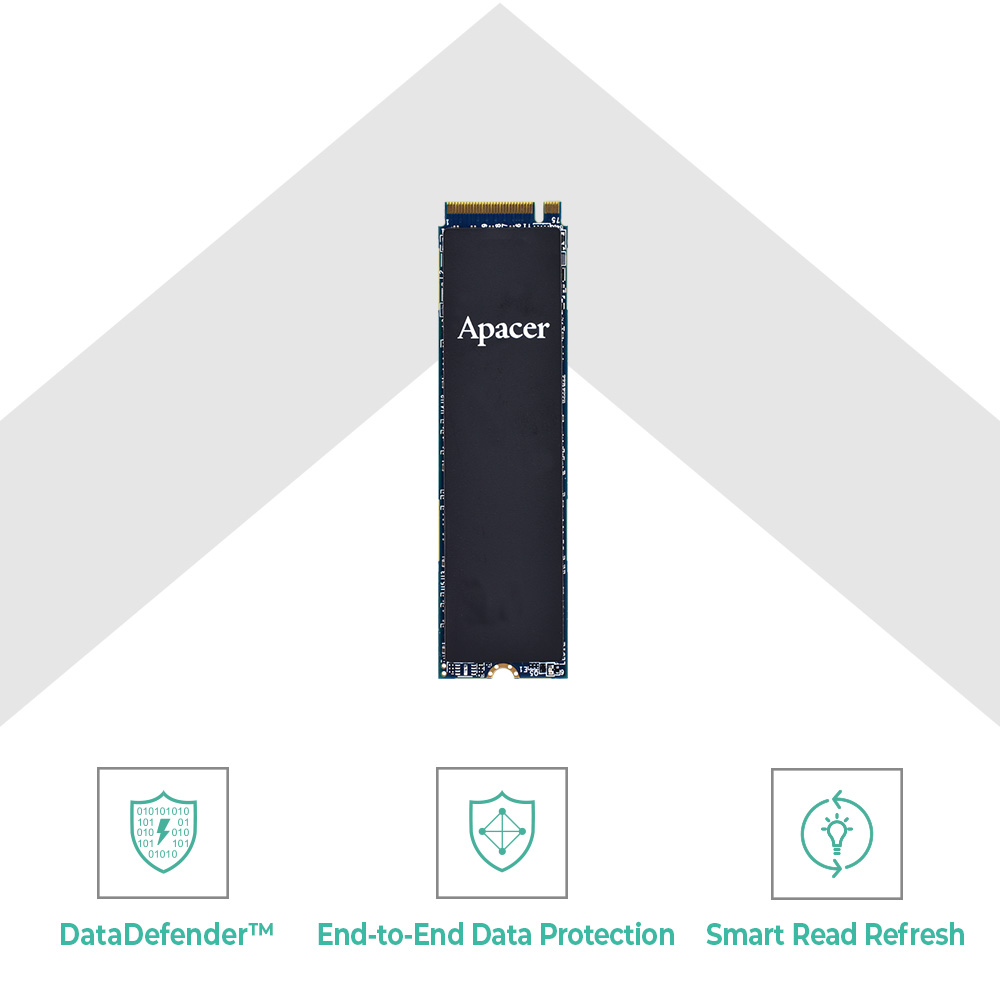

Stable Performance. Lower Power Draw – Discover the PV230-M280

When your application demands consistent performance with minimal power consumption, Apacer’s PV230-M280 is the perfect fit. Fully compliant with PCIe Gen3 x4 and NVMe 1.4 standards, this SSD ensures responsive data handling while optimizing energy usage.

Its M.2 2280 form factor offers design flexibility, making it ideal for embedded systems and industrial devices where space is limited but reliability is critical. With proven stability and dependable speed, the PV230-M280 supports a wide range of power-conscious, performance-driven applications—helping systems stay cool, efficient, and always ready.

Outstanding performance with Apacer’s superior storage solutions:

Improved Power Efficiency: Utilize 3D NAND Technology and power management modes for greater power efficiency.
Outstanding Data Transmission: on-the-module ECC provides extraordinary data transfer performance.
Enhanced Stability: Equipped with Sidefill Technology, enabling stable operation even in environments with high vibration and extreme temperature fluctuations.
Enhanced Security: Equipped with AES and TCG Opal 2.0 (optional) to safeguard against unauthorized access

Equipped with advanced technologies support:

Low-Density Parity-Check (LDPC) Code: Enhance SSD endurance and data reliability.
Global Wear-leveling Technology: Ensure having lower erase counts to extend SSD lifespan.
Flash Bad-block Management: Manage cell blocks that fail over time.
End-to-End Data Protection: Protect sensitive data with comprehensive security.
Others: Page Mapping, DataDefender, TRIM, Hyper Cache Technology, Over-provisioning, DataRAID, SMART Read Refresh, NVMe Secure Erase and power saving modes.

With exceptional performance, proven stability and enhanced data protection, PV230-M280 is the ideal storage or cache solution for a variety of applications, including rugged system application, server and networking, factory automation and transportation.

Spec

Model

PV230-M280
Interface

PCIe Gen3 x4
Connector

Single-sided M.2 2280-M
Form Factor

M.2 2280
NAND Flash Type

3D TLC
Capacity

120GB-1920GB
External DRAM

No
Sequential Read Performance (MB/sec)

Up to 3,560
Sequential Write Performance (MB/sec)

Up to 2,705
ECC Engine

Low-Density Parity-Check (LDPC) Code
IOPS (4K Random Write)

325K
Standard Operating Temperature (°C )

0 ~ 70
Extended Operating Temperature(°C )

-40 ~ 85
Storage Temperature(°C )

-55 ~ 100
Housing

No
Thermal Sensor

Yes
Shock

Operation: Acceleration, 50(G)/11(ms)/half sine (Compliant with MIL-STD-202G)
Non-operation: Acceleration, 1500(G)/0.5(ms)/half sine (Compliant with MIL-STD-883K)
Vibration

Operation:7.69 GRMS, 20~2000 Hz/random (Compliant with MIL-STD-810G)
Non-operation:4.02 GRMS, 15~2000 Hz/random (Compliant with MIL-STD-810G)
Operating Voltage

3.3V ±5%
Power Consumption

Active Mode: 1,840 mA / Idle Mode: 200mA
Dimension (L x W x H )

22.00 x 80.00 x 2.58 (max.)
MTBF (hours)

>3,000,000
